FEATURES & APPLICATIONS
Features
- Updated ergonomics and a larger support platform enhance the control, stability, and cutting precision of this lighter, more compact D-handle jigsaw.
- The 850W motor provides the high cutting power required for thicker wood materials and metals.
- The tool-free blade change system minimizes downtime when swapping out jigsaw blades.
- Virtually dust-free cutting – the dust blower system and dust extraction adapter ensure the cutting line remains clearly visible at all times.
- The speed regulator and adjustable pendulum action give the operator precise control over cutting speed and final cut quality.
Applications
- When using the DRS system, cutting or fitting wood and drywall to size minimizes the amount of airborne dust.
- For interior finishing work, especially cutting drywall or wood-based interior panels (horizontal and vertical cuts).
- Cutting wood boards up to 150 mm thick.
- Cutting metal sheets up to 10 mm thick.
- Cutting tiles and plastic pipes.
PRODUCT INFORMATION
.jpg)

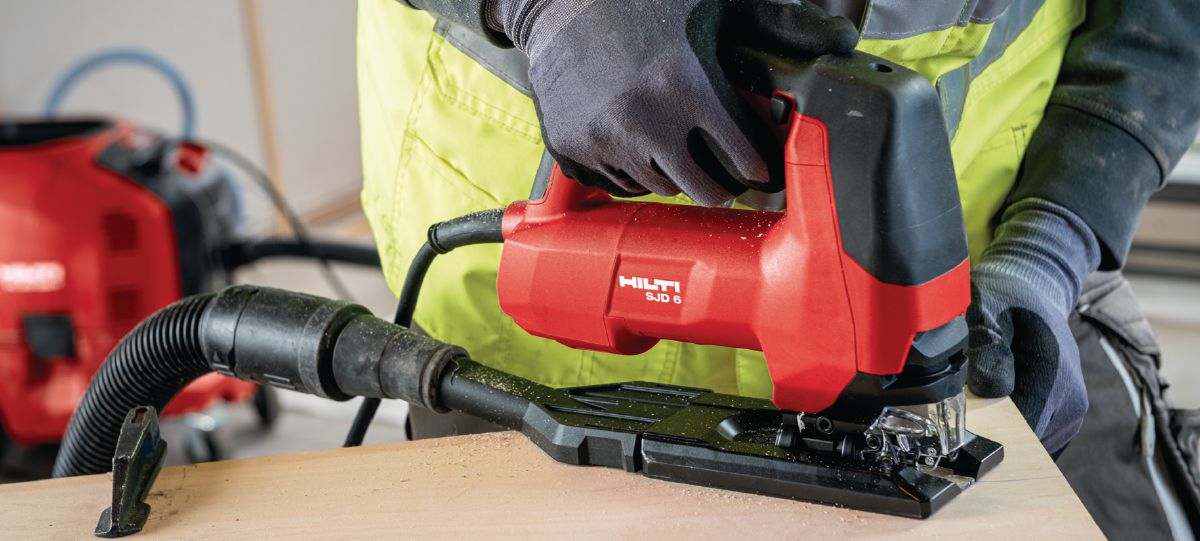

Pendulum Jigsaw SJD 6 220-240V (box)
- Product number: 2132196
- Quantity per package: 1
TECHNICAL DATA
- Rated power: 850 W
- Handle type: D-handle (Hoop grip)
- Weight excluding battery according to EPTA 01/2003: 2.4 kg
- Base materials: Aluminum, drywall, gypsum boards, hardwood (beech, oak, etc.), non-ferrous metals, plastic, plywood, wood, wood composites, tiles
- Stroke rate: 3000 strokes/min
- Maximum bevel angle: 45°
- A-weighted sound pressure level: 93 dB(A)
- Triaxial vibration value for cutting boards (ah,B): 9.7 m/s²
- Uncertainty for triaxial vibration value for cutting boards (K): 1.5 m/s²
- Triaxial vibration value for cutting sheet metal (ah,M): 8.0 m/s²
- Uncertainty for triaxial vibration value for cutting metal (K): 1.5 m/s²
