FEATURES & APPLICATIONS
Features
- Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the drill bit jams – helping to reduce a common safety hazard
- Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
- High versatility for a wide range of drilling and chiseling applications
- Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite
- OSHA 1926.1153 Table 1 compliant when used with the TE DRS-Y and TE DRS-D dust removal system and a Hilti vacuum cleaner
Applications

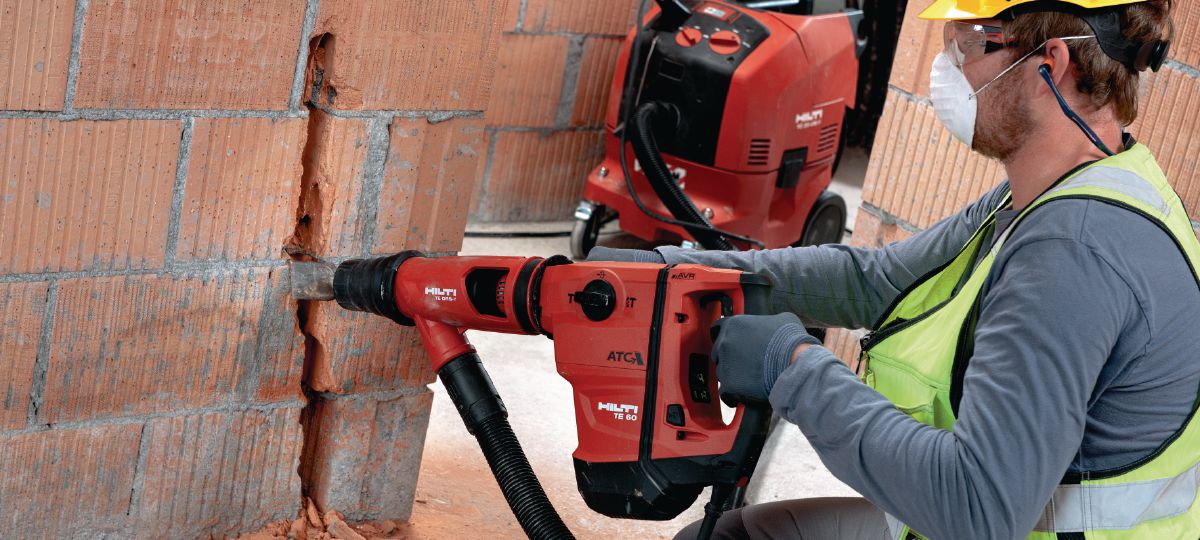

- Medium-duty demolition work

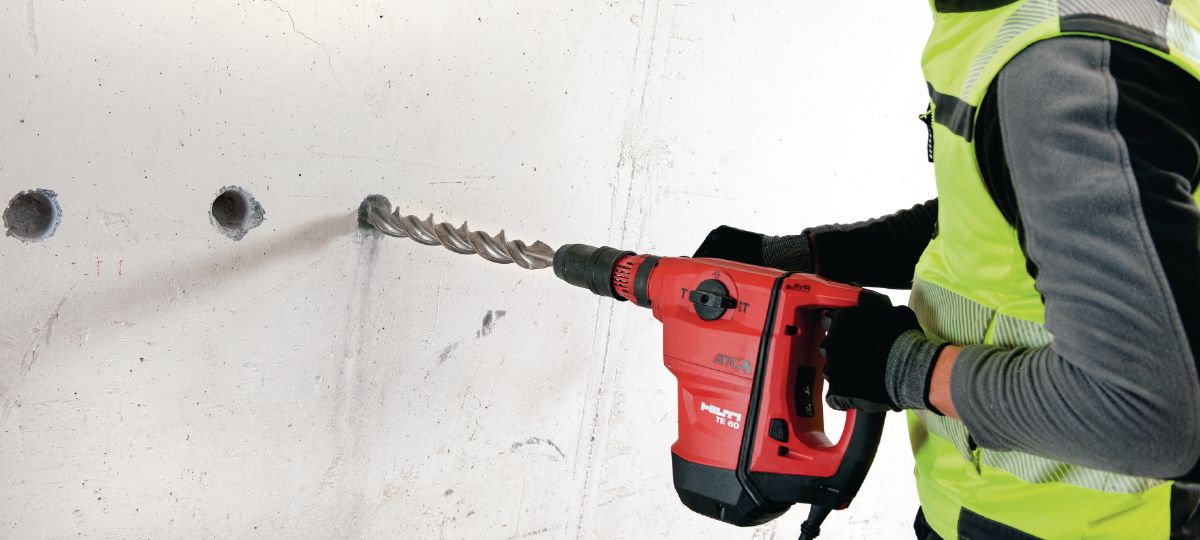

- Drilling anchor and through-holes in concrete and masonry (recommended diameter range 5/8" - 3-1/8")
- Coring in masonry and concrete with TE-Y BK core bits up to 4-15/16" diameter
PRODUCT INFORMATION

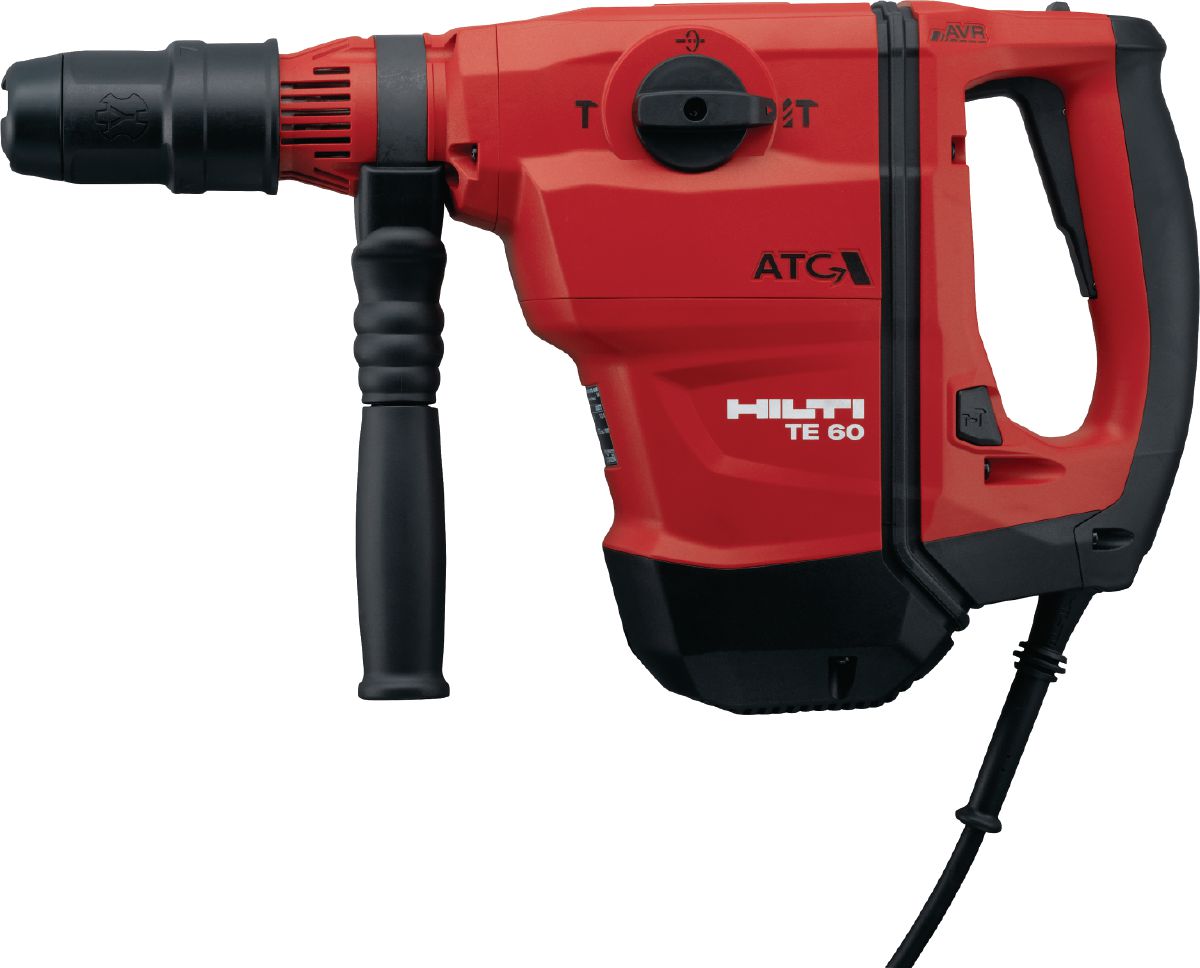

TE 60-ATC/AVR Corded Combihammer 120 V
- Item number: 2132224
- Package quantity: 1
TECHNICAL DATA
- Weight according to EPTA-Procedure 01/2003: 7.8 kg
- Single impact energy: 7.9 J
- Rated current: 13 A
- Hammer drilling diameter range: 12–100 mm
- Optimal hammer drilling range: 18–40 mm
- Hammer drilling speed: 340 rpm
- Full hammering frequency: 3300 impacts/min
- Features: Active Torque Control (ATC), Active Vibration Reduction (AVR), chiseling, depth gauge, power reduction
- Triaxial vibration value for hammer drilling in concrete (ah,HD): 7.2 m/s²
- Compatible dust removal systems: TE DRS-Y, TE DRS-D, TE DRS-BK
- Triaxial vibration value for chiseling in concrete: 6.2 m/s²
- Rated power input: 1350 W
- Dimensions (L x W x H): 494 x 114 x 292 mm
- A-weighted sound power level: 111 dB(A)
- A-weighted emission sound pressure level: 103 dB(A)
