FEATURES & APPLICATIONS
Features
- Better visibility, higher performance – green line lasers are 4 times more visible indoors than red lasers, allowing you to work at longer distances without having to reposition the laser.
- Highly intuitive – one button to switch between vertical, horizontal, and cross-lines, and another to activate the receiver.
- Slope mode – by locking the self-leveling pendulum, the laser can be used to project straight lines at any angle (PMA 93 clamp recommended).
- Practical and robust design – the compact housing with rubberized protective elements withstands harsh jobsite conditions, and the Class 2 laser requires no special safety precautions.
- Low battery warning – helps prevent unexpected work stoppages by letting you know in advance when new batteries are needed.
Applications

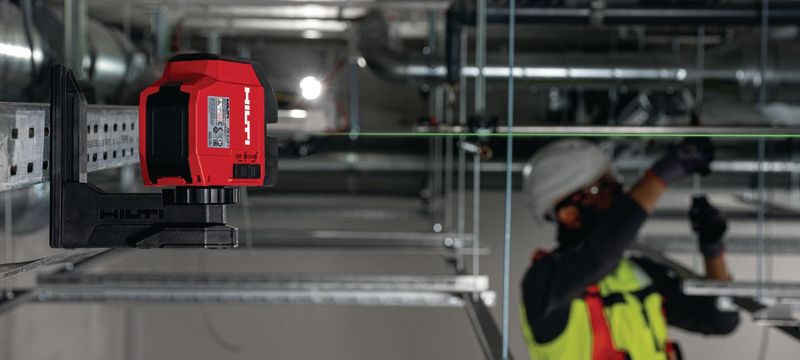

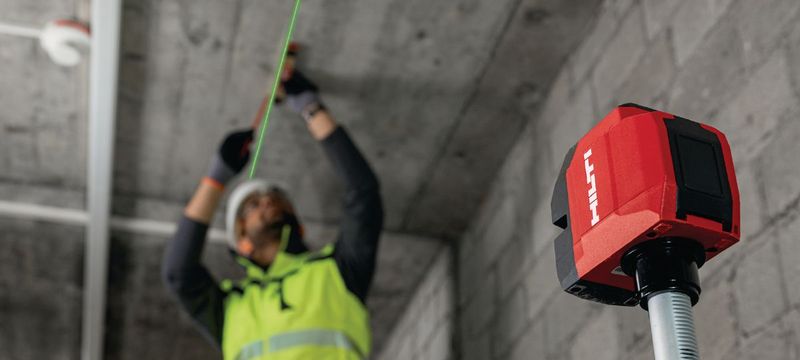

- Leveling and aligning drywall profiles and tracks
- Leveling suspended ceilings
- Leveling and aligning pipes and cables
- Leveling and aligning doors and windows
- Transferring heights
PRODUCT INFORMATION

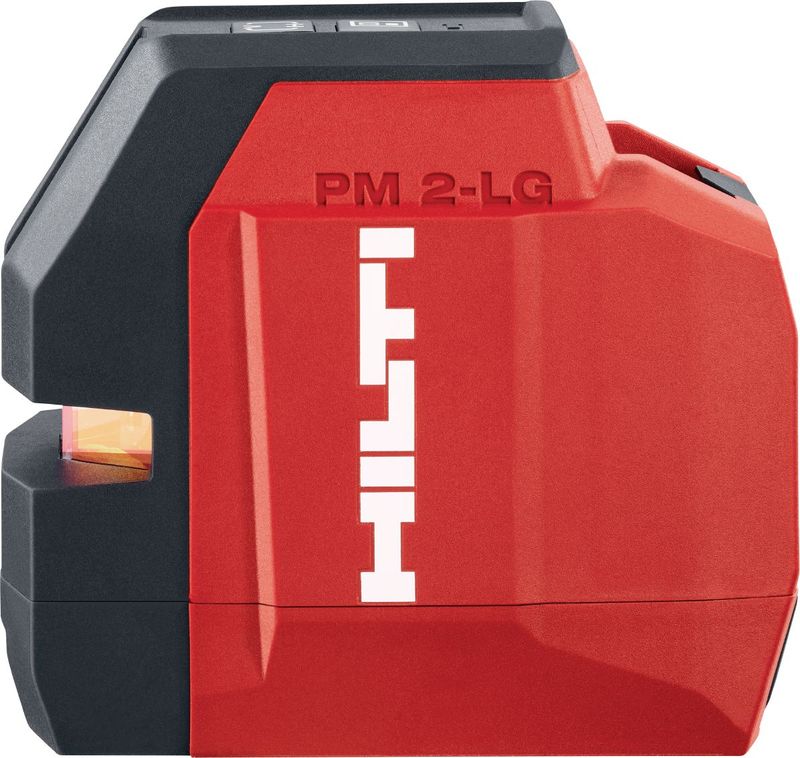

PM 2-LG Line laser
- Item number: 2322754
- Package quantity: 1
TECHNICAL DATA
- Accuracy: ±3 mm at 10 m
- Maximum working range (diameter): 40 m (lines), 100 m (lines, with receiver)
- Maximum operating time: 8 hours
- Battery type: 4 × 1.5 V (AA)
- Self-leveling range at room temperature: ±4°
- Self-leveling time: 3 seconds
- Horizontal fan angle: 200°
- Vertical fan angle: 160°
- IP protection class: IP 54 (EN 60529)
- Laser type: Line laser
