FEATURES & APPLICATIONS
Features
- The most versatile multi-line laser for precise and fast 360° alignment, leveling, and squaring
- Rechargeable B12 Li-ion battery provides up to 1.5 days of continuous layout work (battery and charger sold separately)
- Metal Blade Axicon technology – a protective housing for precision components helps maintain the multi-line laser's accuracy over time
- Out-of-level and low battery warnings – help prevent errors and unexpected downtime
- Class 2 laser – no special precautions required
Applications

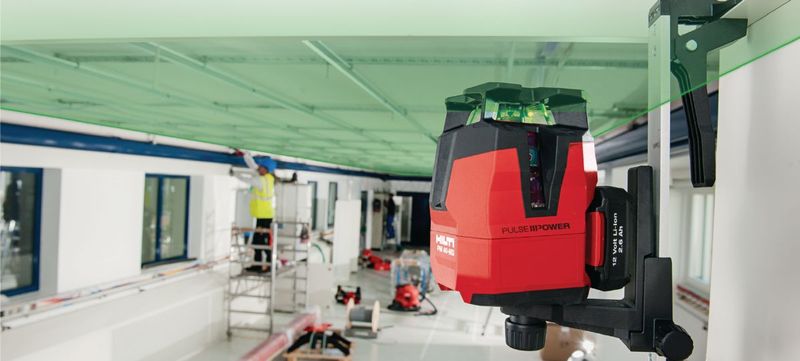

- Aligning suspended ceilings

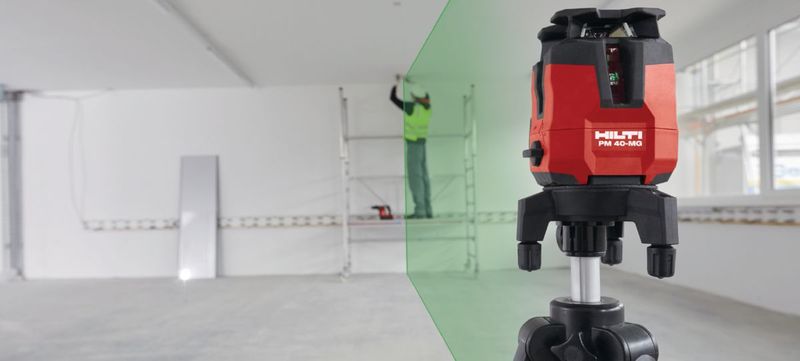

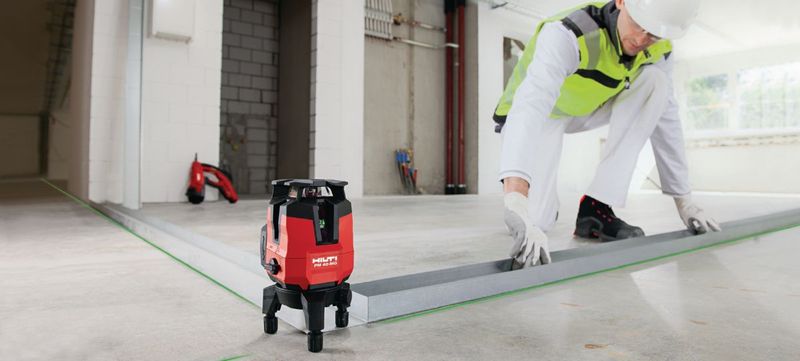

- Positioning and marking drywall tracks on floors, walls, and ceilings
- Transferring reference heights
- Vertical alignment of pipes and cables

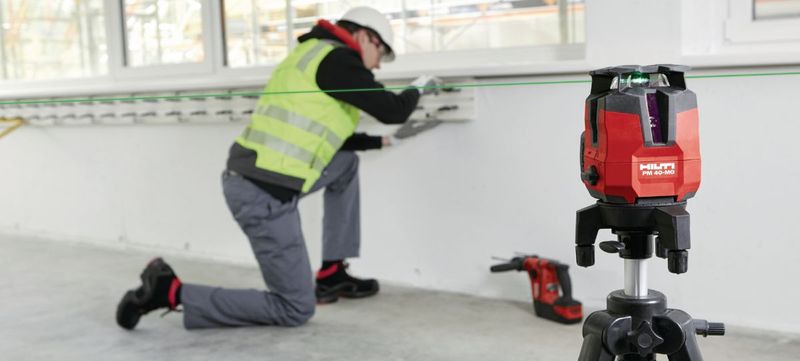

- Leveling electrical outlets, cable trays, radiators, and pipe systems
PRODUCT INFORMATION
PM 40-MG Multi-line laser
- Item number: 2152385
- Package quantity: 1
TECHNICAL DATA
- Accuracy: ±0.08 in at 33 ft
- Maximum operating range (diameter): 131 ft (lines), 328 ft (lines, with receiver)
- Self-leveling range at room temperature: -3.0° / +3.0°
- Self-leveling time: 3 seconds
- Horizontal fan angle: 360°
- Vertical fan angle: 240°
- IP protection class: IP 54 (EN 60529)
- Laser type: Line and point laser
