FEATURES & APPLICATIONS
Features
- Ergonomically designed D-grip for comfortable use over long periods
- Robustly built and engineered specifically for high-performance cordless drilling
- Excellent performance-to-weight ratio and compact design
- Virtually dustless drilling when used with the DRS-4-A dust removal system
- Electronic switch for precise hole-starting
Applications

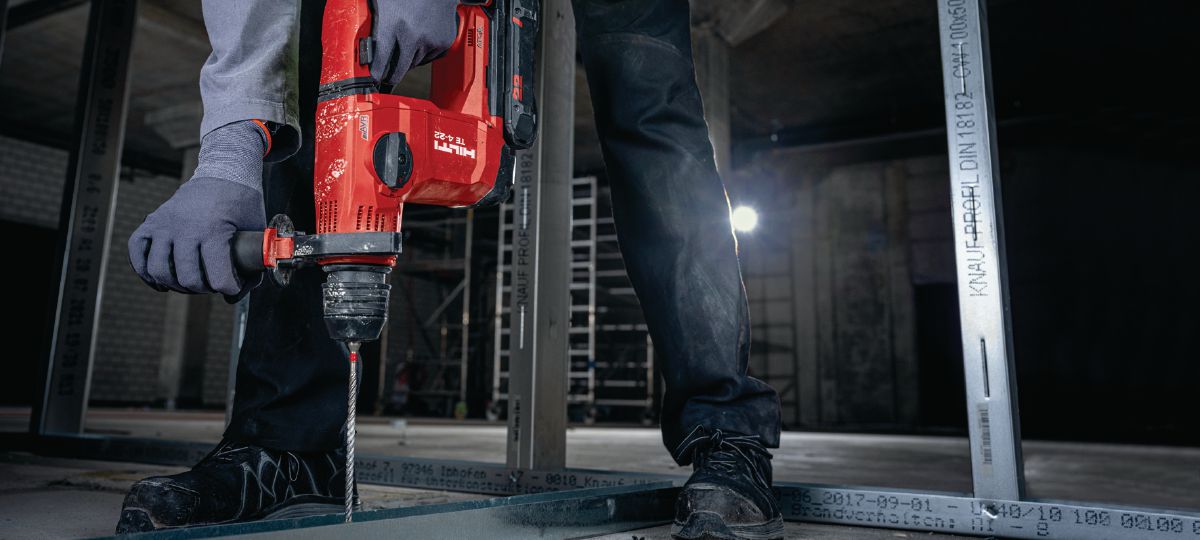

- Drilling and hammer drilling in concrete and masonry
- Occasional drilling in wood and steel with optional chuck adapter
- Screwdriving using the special bit holder with TE-C (SDS Plus) connection end

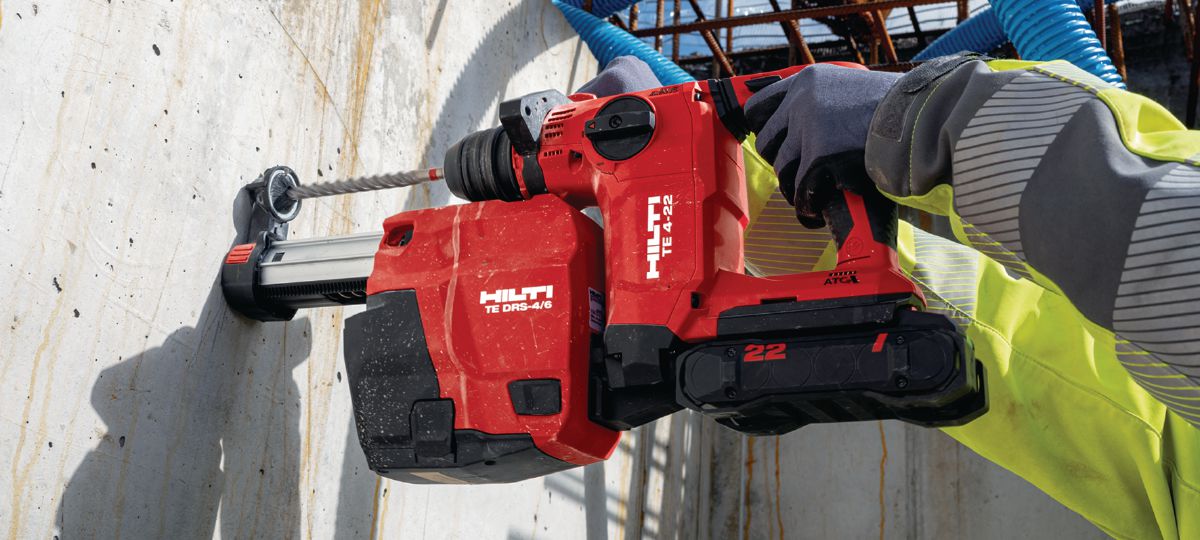

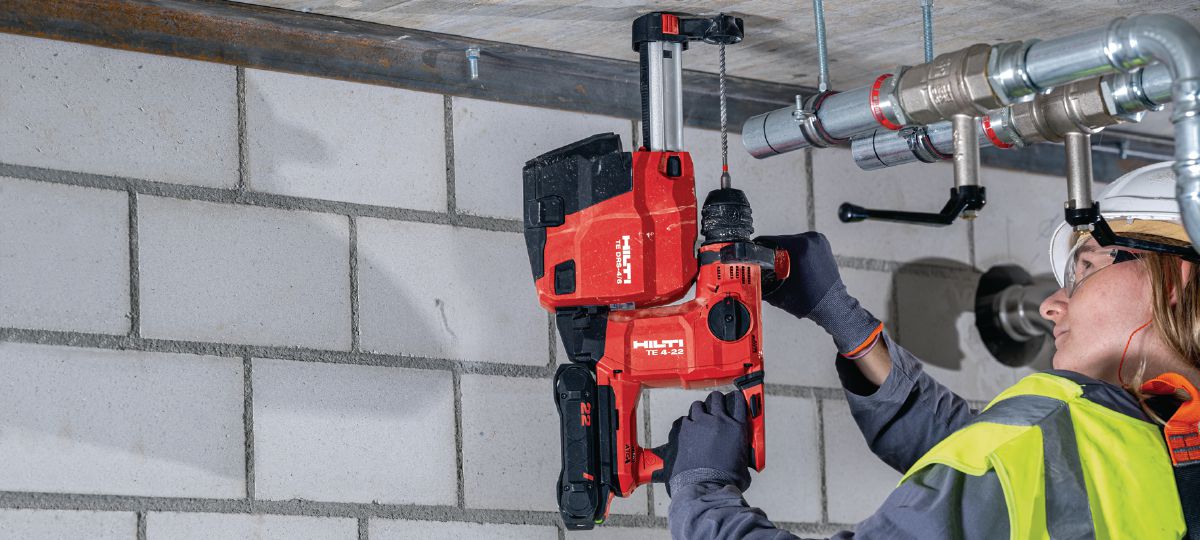

- Drilling in concrete in clean areas using the integrated dust removal system (DRS-4-A)
PRODUCT INFORMATION

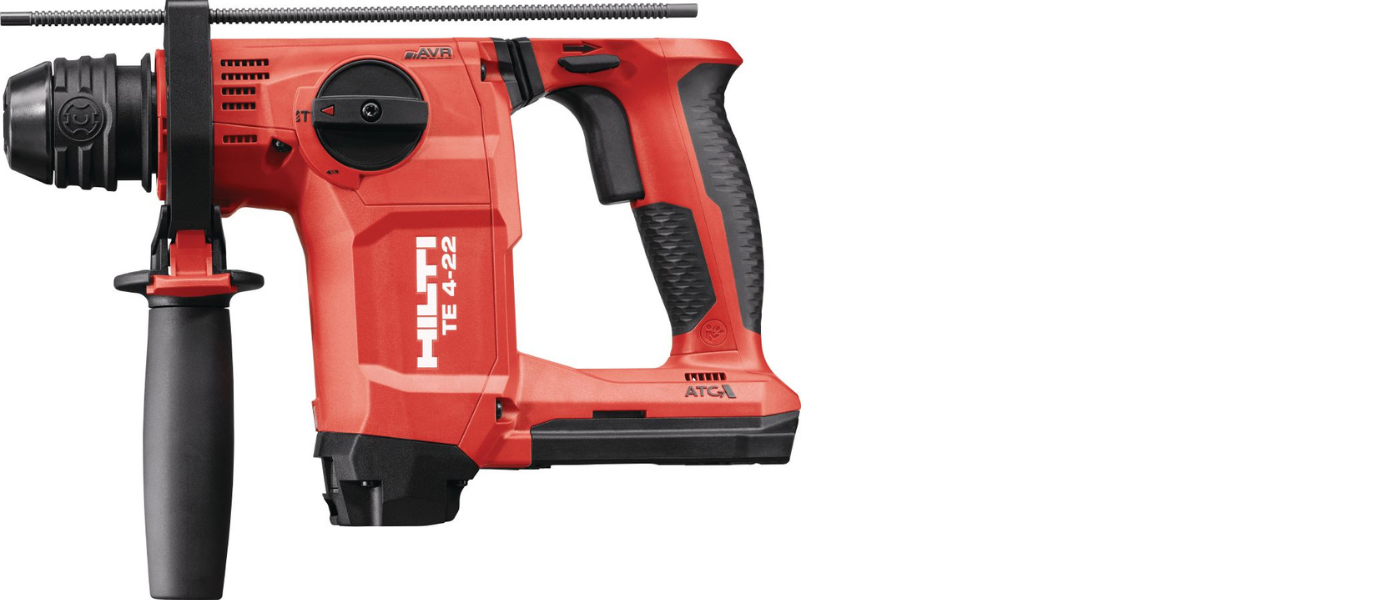

Cordless rotary hammer TE 4-22 box
- Item Number: 2253088
- # of items in Package: 1
Cordless rotary hammer TE 4-22 case
- Item Number: 2253086
- # of items in Package: 1
TECHNICAL DATA
- Weight according to EPTA Procedure 01/2003: 3.3 kg
- Optimum hammer drilling range: 5 - 12 mm
- Hammer drilling diameter range: 4 - 18 mm
- Single impact energy: 2 J
- Hammer drilling RPM: 1050 rpm
- Full hammering frequency: 5200 impacts/minute
- Functionality: Integrated Dust Removal System (DRS), Depth gauge
- Dust removal system available: TE DRS-4-A, TE DRS-D, TE DRS-S
